Ozone - Sliding Folding System - 444 - SL-444 (5 Plus 5 Panel)
BrandOzone
SKU500248
-
Product is not available
- Price upon request
-
-

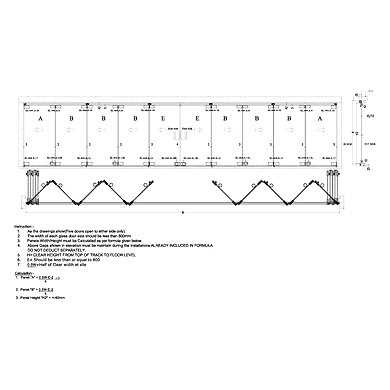

As the drawings show(Five doors open to either side only). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL E= Should be less than or equal to 800 0.5W=Half of Clear width at site
-
Additional Information
As the drawings show(Five doors open to either side only). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL E= Should be less than or equal to 800 0.5W=Half of Clear width at site
SL-444 (5 Plus 5 Panel) Five Panel Sliding Either Side
Panel "A" = [ (0.5W-E-2 ) /4] -17 Panel "B" = [ (0.5W-E-2) /4 ] Panel Height ''H2'' = H-60mm -
