Ozone - Sliding Folding System - 444 - SL-444 (4 Plus 1 Panel)
BrandOzone
SKU500251
-
Product is not available
- Price upon request
-
-

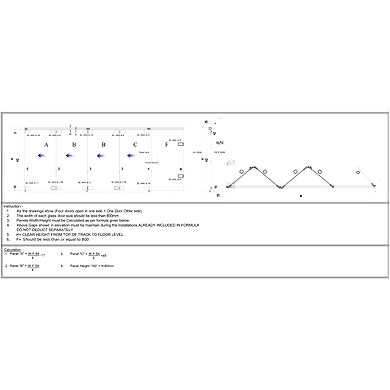

As the drawings show (Four doors open in one side + One Door Other side). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL F= Should be less than or equal to 800
-
Additional Information
As the drawings show (Four doors open in one side + One Door Other side). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL F= Should be less than or equal to 800
SL-444 (4 Plus 1 Panel) Four Sliding One Side Plus 1 Door
Panel "A" = [ (W-F-54)/4 ] - 17 Panel "B" = [ (W-F-54) /4] Panel "C" = [ (W-F-54)/4 ] +45 Panel Height ''H2'' = H-60mm -
