Ozone - Sliding Folding System - 444 - SL-444 (2 Plus 2 Panel)
BrandOzone
SKU500255
-
Product is not available
- Price upon request
-
-

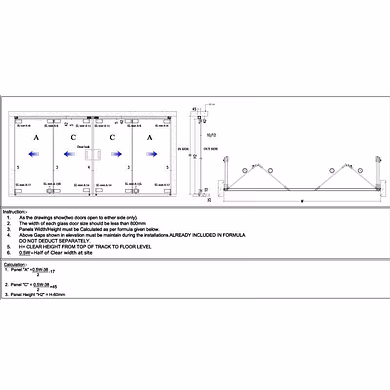

As the drawings show(two doors open to either side only). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL 0.5W=Half of Clear width at site
-
Additional Information
As the drawings show(two doors open to either side only). The width of each glass door size should be less than 800mm Panels Width/Height must be Calculated as per formula given below. Above Gaps shown in elevation must be maintain during the installations. ALREADY INCLUDED IN FORMULA DO NOT DEDUCT SEPARATELY. H= CLEAR HEIGHT FROM TOP OF TRACK TO FLOOR LEVEL 0.5W=Half of Clear width at site
Panel "A" =[ (0.5W-38)/2 ] - 17       Panel "C" = [ (0.5W-38) /2 ] +45 Panel Height ''H2'' = H-60mm
SL-444 (2 Plus 2 Panel) Two Panel Sliding Either Side -
