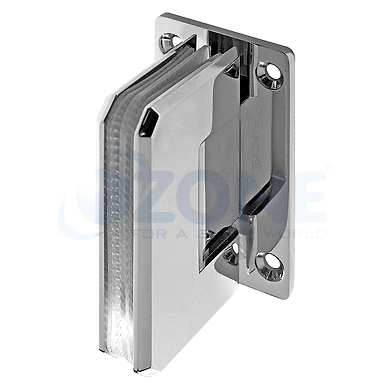

Wall to Glass Hinge Centrally positioned pivot line Can be used for double action doors also Secure holding with glass With gaskets to prevent glass damage. Door width should not exceed 800 mm. Door weight should not exceed 40 Kg. Suitable Glass thickness 8mm / 10mm. Fittings are to be tightened to the specified torque in all occasions (4 Nm) Material:-Brass Finish: CP/SN
Wall to Glass Hinge
Centrally positioned pivot line
Can be used for double action doors also
Secure holding with glass
With gaskets to prevent glass damage.
Door width should not exceed 800 mm.
Door weight should not exceed 40 Kg.
Suitable Glass thickness 8mm / 10mm.
Fittings are to be tightened to the specified torque in all occasions (4 Nm)
Material:-Brass
Finish: CP/SN
