Ozone - Shower Cubicle Fittings - OSH-1A-CP
BrandOzone
SKU500315
-
Product is not available
- Price upon request
-
-

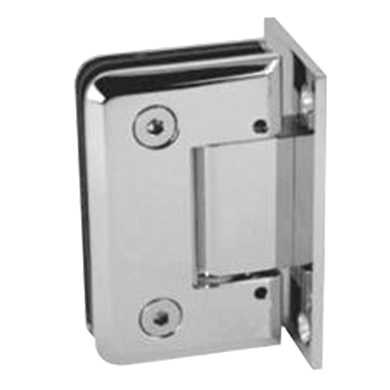

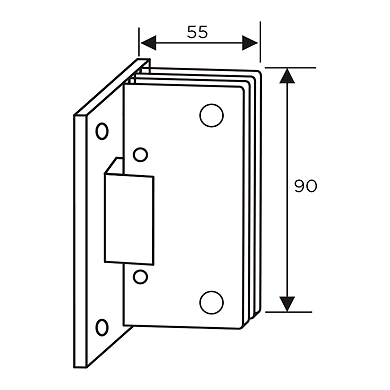

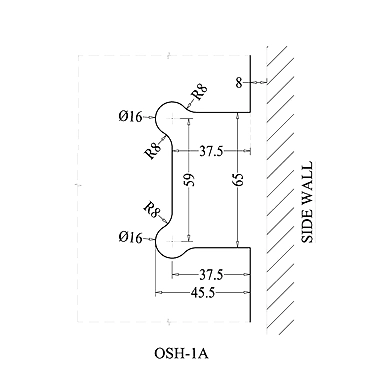

Wall to Glass Hinge Allow to set zero point of the hinge after installation and adjust for any irregular wall condition Simply loosen one side of the grub screws to adjust the door to the desired angle and closed position Door width should not exceed 800 mm. Door weight should not exceed 40 Kg. Suitable Glass thickness 8mm / 10mm. Fittings are to be tightened to the specified torque in all occasions (4 Nm) Spindle can be adjusted to 85° inward closure Self-closing from 20° Material:-Brass Finish: CP/SN
-
Additional Information
Wall to Glass Hinge Allow to set zero point of the hinge after installation and adjust for any irregular wall condition Simply loosen one side of the grub screws to adjust the door to the desired angle and closed position Door width should not exceed 800 mm. Door weight should not exceed 40 Kg. Suitable Glass thickness 8mm / 10mm. Fittings are to be tightened to the specified torque in all occasions (4 Nm) Spindle can be adjusted to 85° inward closure Self-closing from 20° Material:-Brass Finish: CP/SN
-
