Wall to Glass Hinge Offset Positioned Pivot Line Can be used for double action doors also. Secure holding with glass. With gaskets to prevent glass damage. Door width should not exceed 800 mm. Door weight should not exceed 40 Kg. Suitable Glass thickness 8mm / 10mm. Fittings are to be tightened to the specified torque in all occasions (4 Nm). Material:-Brass. Finish: CP/SN

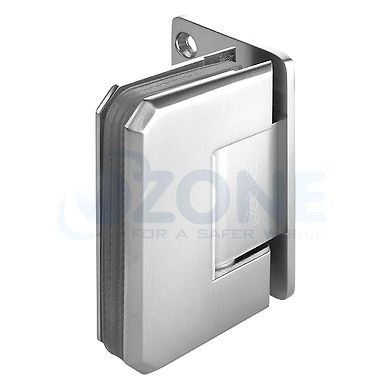

Wall to Glass Hinge
Offset Positioned Pivot Line
Can be used for double action doors also.
Secure holding with glass.
With gaskets to prevent glass damage.
Door width should not exceed 800 mm.
Door weight should not exceed 40 Kg.
Suitable Glass thickness 8mm / 10mm.
Fittings are to be tightened to the specified torque in all occasions (4 Nm).
Material:-Brass.
Finish: CP/SN
Wall to Glass Hinge
Offset Positioned Pivot Line
Can be used for double action doors also.
Secure holding with glass.
With gaskets to prevent glass damage.
Door width should not exceed 800 mm.
Door weight should not exceed 40 Kg.
Suitable Glass thickness 8mm / 10mm.
Fittings are to be tightened to the specified torque in all occasions (4 Nm).
Material:-Brass.
Finish: CP/SN
