Ozone - OMPS-Z Sliding Folding System - OMPS Z-3
BrandOzone
SKU500300
-
Product is not available
- Price upon request
-
-

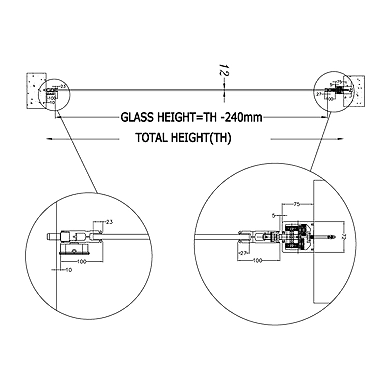

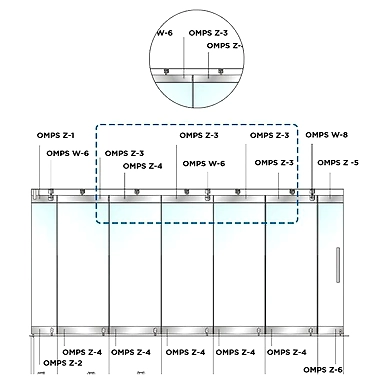

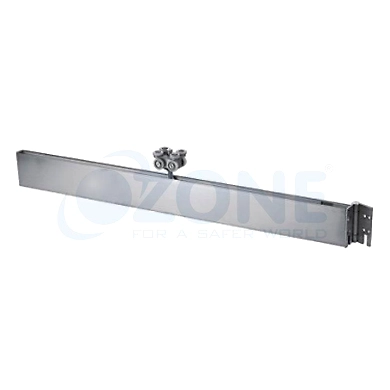

Specification:        Upper door strip (hinge + roller) OMPS Z-3 Upper door strip with side hinge and roller). Casting Material:-Aluminium Alloy. Cover Material:-SS-304 Finish:-SSS OMPS-W SYSTEM SPECIFICATION Sliding Folding System Do not required space for making parking. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels are integrated to each-other with help of SS-304 hinges fixed at top/Bottom profile. Top track of Aluminium (75X75),hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Each would be stack/park at designed(AS PER DESIGN PROVIDE BY OZONE DEPEND UPON THE DOOR CONFIGURATION). Max Height:-3000mm Max widht:- 1000mm Max Glass Thickness:- 12mm Toughened GlassMax Weight :-90kg
-
Additional Information
Specification:        Upper door strip (hinge + roller) OMPS Z-3 Upper door strip with side hinge and roller). Casting Material:-Aluminium Alloy. Cover Material:-SS-304 Finish:-SSS OMPS-W SYSTEM SPECIFICATION Sliding Folding System Do not required space for making parking. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels are integrated to each-other with help of SS-304 hinges fixed at top/Bottom profile. Top track of Aluminium (75X75),hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Each would be stack/park at designed(AS PER DESIGN PROVIDE BY OZONE DEPEND UPON THE DOOR CONFIGURATION). Max Height:-3000mm Max widht:- 1000mm Max Glass Thickness:- 12mm Toughened GlassMax Weight :-90kg
-
