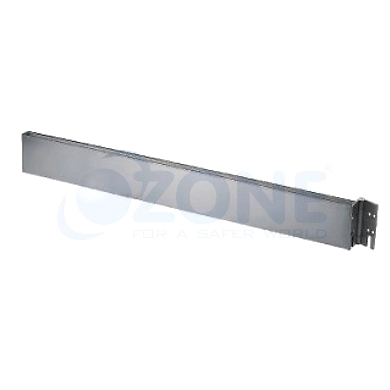

Ozone - OMPS-W Sliding Folding System - OMPS W-5

BrandOzone

• Product is not available

• Price upon request
• Quantity

  -

  +

  Send Enquiry

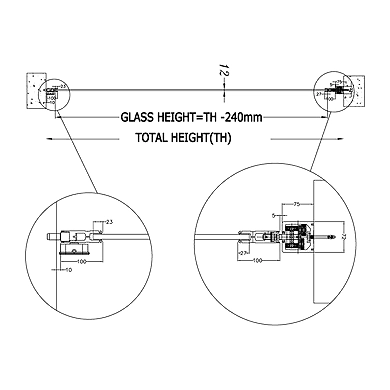

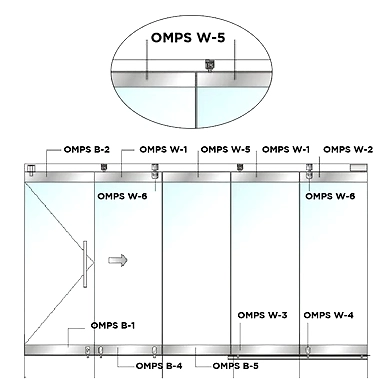

• Specification:        Upper & lower door strips OMPS W-5 Fixed to Top/ Bottom of Sliding Panel Without Roller/Surface Bolt . Casting Material:-Aluminium. Cover Material:-SS-304 Finish:-SSS OMPS-W SYSTEM SPECIFICATION Sliding Folding System Do not required space for making parking. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels are integrated to each-other with help of SS-304 hinges fixed at top/Bottom profile. Top track of Aluminium (75X75),hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Each would would be stack/park at designed(AS PER DESIGN PROVIDE BY OZONE DEPEND UPON THE DOOR CONFIGURATION). Max Height:- 3000mmMax widht:- 1000mmMax Glass Thickness:- 12mm Toughened GlassMax Weight :-90kg

  Minimum Order Quantity1
