Ozone - OMPS-B Glass Parking System - OMPS B-5
BrandOzone
SKU500284
-
Product is not available
- Price upon request
-
-

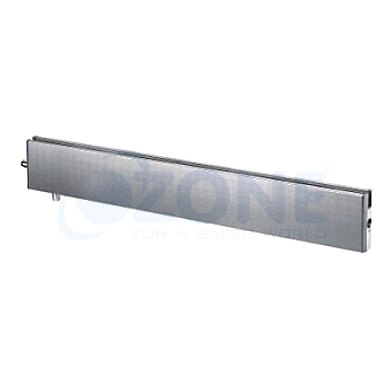

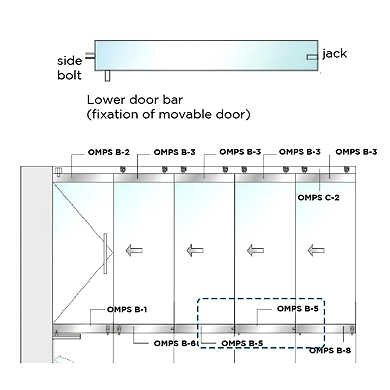

Specification:      Lower door strip (side bolt jack) OMPS B-5 Lower door strip With side bolt to connected with side panels. Casting Material:-Aluminium. Cover Material:-SS-304 Finish:-SSS OMPS-B SYSTEM SPECIFICATION Sliding Parking System Required space for Design/Making parking as per site condition/application feasibilty. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels would be disintegrated to each-other parked into the designed parking aside. Top track of Aluminium (75X75) and Designed Parking ,hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Max Height:- 3000mm Max widht:- 1200mm Max Glass Thickness:- 12mm Toughened GlassMax Weight :-120kg
-
Additional Information
Specification:      Lower door strip (side bolt jack) OMPS B-5 Lower door strip With side bolt to connected with side panels. Casting Material:-Aluminium. Cover Material:-SS-304 Finish:-SSS OMPS-B SYSTEM SPECIFICATION Sliding Parking System Required space for Design/Making parking as per site condition/application feasibilty. Each Panels move linearly into Aluminium top track Channel (75X75) of Aluminium Finish, hung with help of nylon roller fixed with top rail/Profile of SS-304 material and Aluminium Finish. Each Panels would be disintegrated to each-other parked into the designed parking aside. Top track of Aluminium (75X75) and Designed Parking ,hung to MS structure or solid concrete (NOT IN OZONE SCOPE). Bottom rail would be lock into the floor with dust excluding socket of SS-304. Max Height:- 3000mm Max widht:- 1200mm Max Glass Thickness:- 12mm Toughened GlassMax Weight :-120kg
-
