Ozone - Floor Spring - FS-11400 STD STD
BrandOzone
SKU500116
-
Product is not available
- Price upon request
-
-

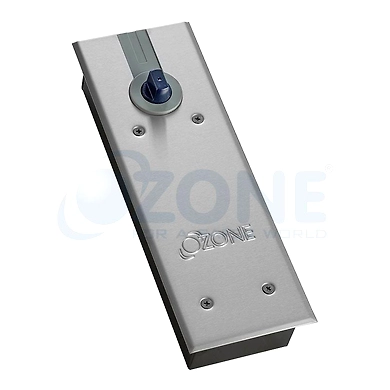

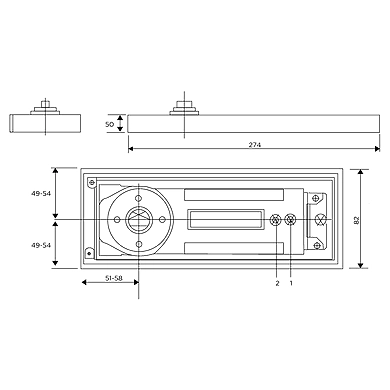

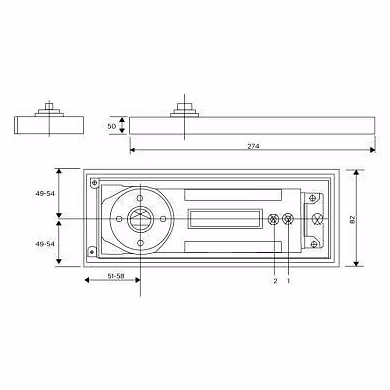

Single Cylinder Floor Spring for Heavy Wooden/Glass Doors Closing Force EN 1-4 Max Door Weight Capacity: 65-200 Kgs. Max Door Widht 1300mm Closing Speed 130-10 Degree Final Closing Speed 10-0 Degree Without Hold Open as Standard Hold open at 90,105 Degree on Demand Wieght of floor machine approx 6 Kg Dimension inclusing cement box:-L=274mm,W=82mm,H=50mm Adjustable possible within steel box:-L=8mm,W=8mm,H=6mm Durablity:-5,00,000 Cycle Tested. Tested as per EN-Standard Finish(Cover):-SSS
-
Additional Information
Single Cylinder Floor Spring for Heavy Wooden/Glass Doors Closing Force EN 1-4 Max Door Weight Capacity: 65-200 Kgs. Max Door Widht 1300mm Closing Speed 130-10 Degree Final Closing Speed 10-0 Degree Without Hold Open as Standard Hold open at 90,105 Degree on Demand Wieght of floor machine approx 6 Kg Dimension inclusing cement box:-L=274mm,W=82mm,H=50mm Adjustable possible within steel box:-L=8mm,W=8mm,H=6mm Durablity:-5,00,000 Cycle Tested. Tested as per EN-Standard Finish(Cover):-SSS
Floor Spring - Functional Mechanism
-
